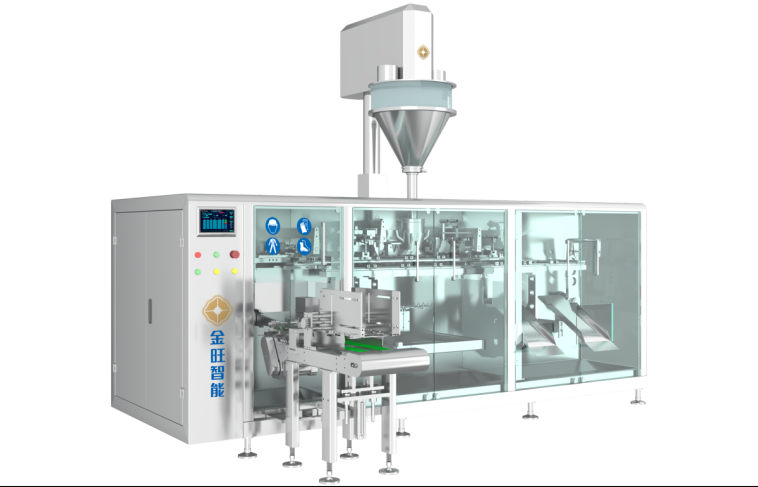

Name: Horizontal Pesticide Filling Machine with Automatic Bag Opening Filling and Sealing Suitable for Various Packaging Sizes
Brand: Jiangsu Jinwang Intelligent Sci-Tech Co., Ltd
SKU: DGD-220BJ
Price: 20000 USD
Availability: InStock

Rumah > Produk > Mesin Pengisian Pestisida >

Horizontal Pesticide Filling Machine with Automatic Bag Opening Filling and Sealing Suitable for Various Packaging Sizes

Tempat asal:

China Jiangsu

Nama merek:

JWIM

Nomor model:

DGD-220BJ

Hubungi Kami

Minta Kutipan

Rincian produk

Kapasitas Produksi:

100g: 45-50 bungkus/menit; 200g: 35-45 bungkus/menit; 500g: 25-35 kantong/menit;*Kapasitas produksi

Lingkup aplikasi:

Minimal 120×140mm, maksimum 215×300mm

Kapasitas pengepakan:

≤ 500g*Rentang kapasitas pengisian bervariasi tergantung pada sifat fisik bahan baku dan perangkat p

Ketepatan:

50g, ±0,5g; 100-200g, ±1g; 300-500g, ±3g *Akurasi pengukuran bervariasi tergantung pada karakteristi

Tekanan udara:

0,6-0,8Mpa

Udara:

700L/Min

Kekuatan:

~380V 50Hz/4,5KW

Ukuran:

3350×2180×1400mm(L×W×H)*Tidak termasuk perangkat pengisi bubuk

Berat:

Sekitar 4500kg

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Harga

$20000PCS

Kemasan rincian

Kasus Kayu

Waktu pengiriman

30 hari kerja

Syarat-syarat pembayaran

L/C, T/T

Menyediakan kemampuan

1 BUAH per bulan

Produk terkait

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

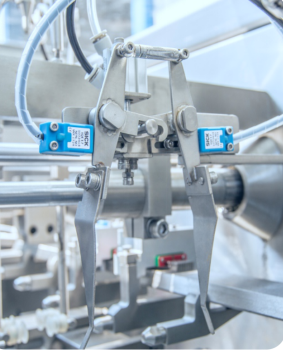

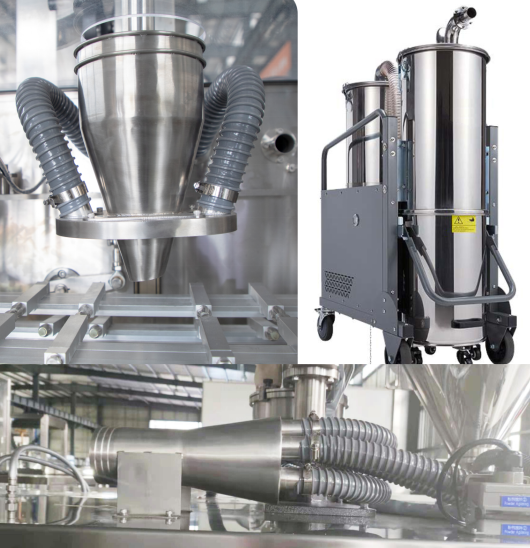

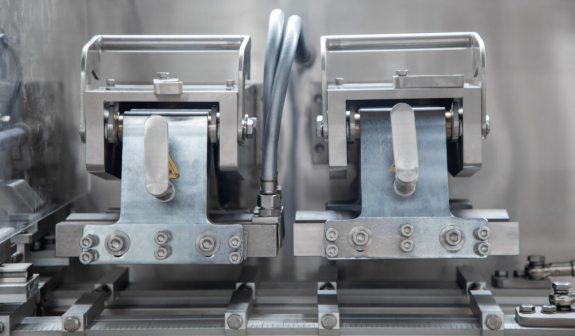

DGD-220BJ Automatic Horizontal Preformed Bag Packing Machine 1.Introduction The DGD-220BJ Automatic Horizontal Preformed Bag Packing Machine includes a bag taking mechanism, a bag opening mechanism, a blowing mechanism, a filling mechanism, heat sealing, cold sealing and shaping, etc. The coordinated actions of each mechanism are completed through the mechanical linkage and cam structure, and the position signal is fed back by the encoder on the main shaft. Under the
